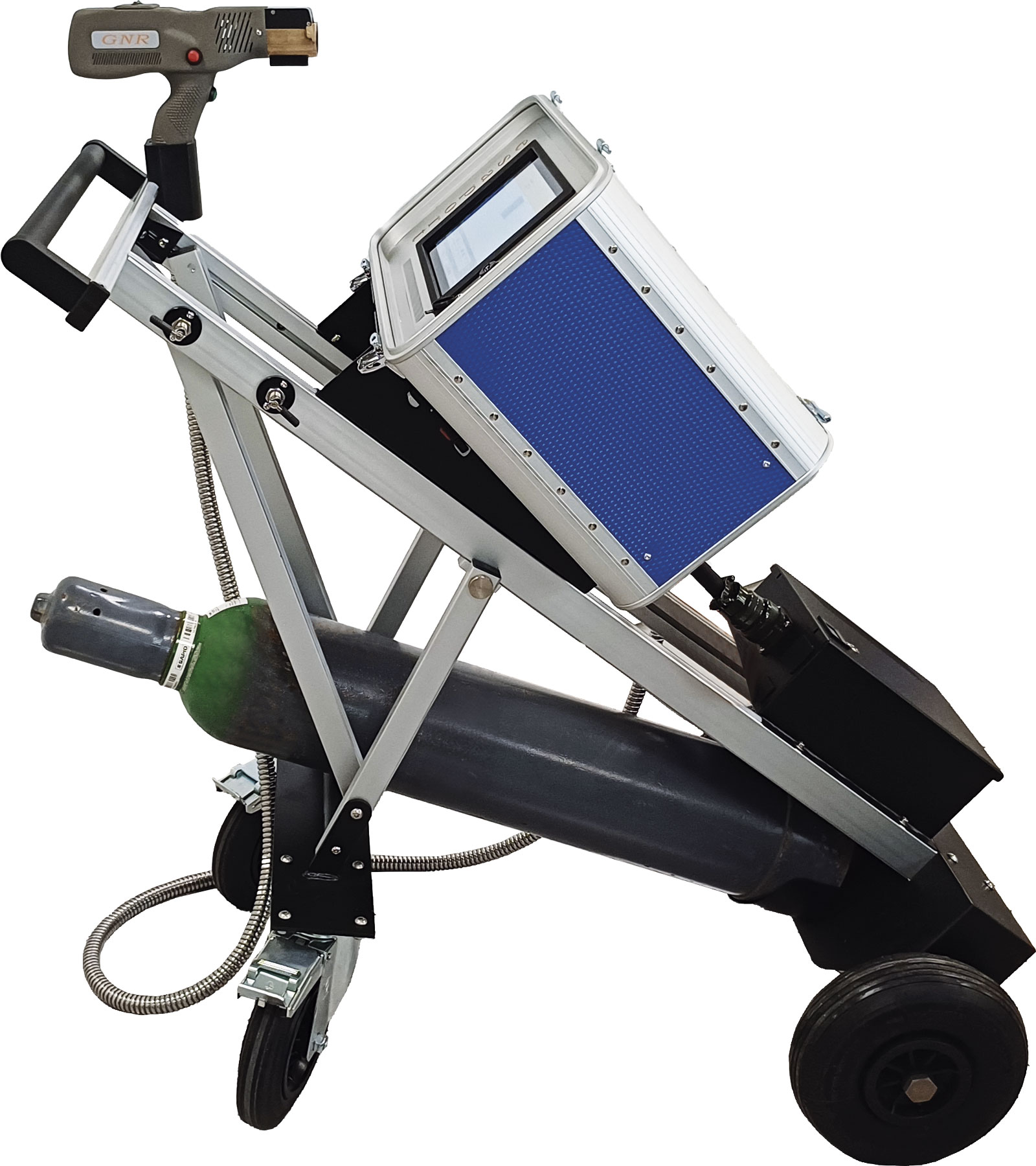

E3 Esaport
Portable Spark Spectrometer
E3 Esaport portable optical emission spectrometer for analysis on site, equipped with arc and/or spark excitation source, is the perfect instrument for all fields of applications in Metal Sorting, positive Material Identification (PMI), incoming quality controls and so on.
Using the argon gas flushed pistol the results are comparable with the ones obtained with a Lab instrument, according to sample’s preparation.
The instrument is extremely functional and allows the rapid identification of all metal alloys and the analysis of elements such as C, Al, Si and Mg.
It is, for this reason, competitive to the portable X ray portable systems, because it has a bigger analytical capacity and is not submitted to restrictions related to radiogenic sources detection.
The instrument is small sized and can be brought and used everywhere, from production department to warehouse. In addition a practical and handy trolley (optional) is available to make easier the movement from a place to an other.
- CMOS Optical System
- User-Friendly Panel PC
- Special Power Management with battery (optional) for independent running
- Trolley (optional)
- On Site Analysis
- Metal Sorting
- Positive Material Identification (PMI)
- Iron and Steel and its alloys
- Cupper and its alloys
- Aluminum and its alloys
- Nickel and its alloys
- Titanium and its alloys
Optical System
- Optical Air System: Multi High Resolution CMOS system
- High luminosity holographic grating
- Wavelength Range: 190 – 410 nm
Other Information
- Power Supply: 110/220V +/- 10%, single phase, 50/60
- Dimension: 510 x 290 x 600 mm
- Weight: 23 Kg (trolley and battery pack excluded)
Software Informations
- Analysis
- Controlled Standardization
- Printing of the Certificates (customizable)
- Determination of alloys in accordance to international norms (UNI, ASTM, DIN, …)
- Network linking and remote control
- Data Export
- Equipment and Spark Check
- Multi-User Access
- Software Remote Update
Quality control
in metal analysis using OES/RDE
Material properties
control using XRD/TXRF
100%
Made in Italy
