Elvatech cups
Introducing our XRF sample plastic cups ELVATECH with accessories designed for efficient and reliable containment of samples during X-ray fluorescence analysis.
Key Features:
Dimensions: Outer diameter of 30.7 mm and a height of 16.0 mm.
Composition: Each cup includes a container, a lid, and a sealing ring to ensure secure sample containment.
Availability: Offered exclusively in a 32 mm diameter size.
Packaging Options: Available in packages of 1,000 pcs.

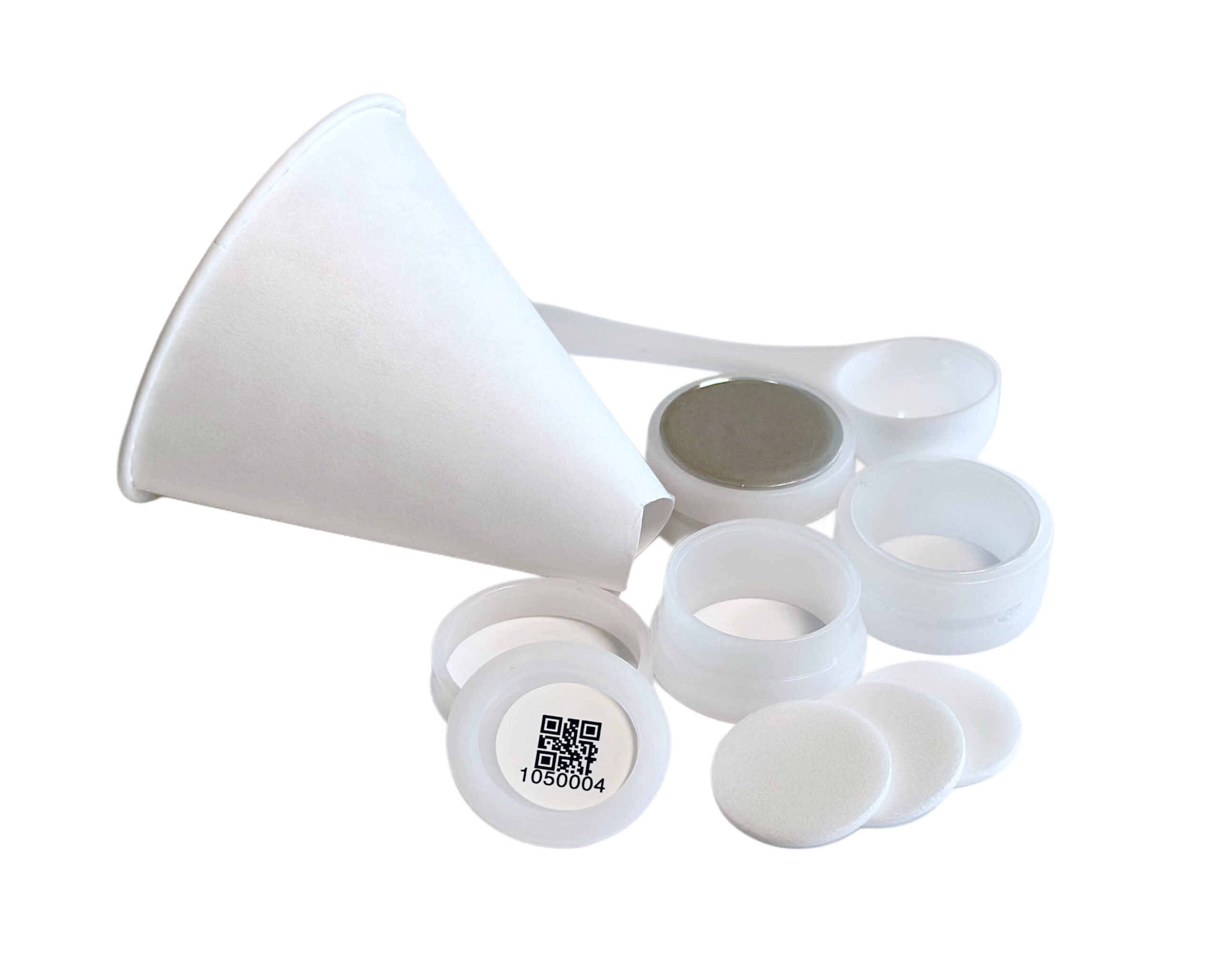

Additional accessories: cup liners, paper funnel, plastic measure spoons, QR code round label for plastic cups and stainless steel sieve.
Pricing:
For orders of 1,000 units there a re regular prices
For orders of 10,000 units you receive a -10% discount
For orders of a pack of each item additional -10% discount.
Proudly designed in Canada, our XRF sample cups ELVATECH with additional accessories meet high-quality standards essential for precise analytical results.
For testing purposes, we can provide the products in smaller quantities upon individual agreement.
Price range: $50.00 through $8,000.00
Introducing the XRF Sample Cup ELVATECH with accessories. Engineered for precision and reliability in your analytical processes.
Key Features:
Innovative Design: Our XRF sample plastic cup ELVATECH (PSC30716) comprises a container, lid, and a ring with a rounded edge. This thoughtful design ensures that the XRF film remains intact during sealing, significantly reducing the risk of tears compared to cups with sharp-edged rings (вставить фото).
Secure Sealing: The specially designed indentation between the ring and the cup guarantees a tight and secure fit, providing confidence that your samples are safely contained.
Enhanced Sample Preparation: The ELVATECH cup liner allows for the compression of powdered materials such as minerals and soils into a dense, homogeneous form. This feature is particularly beneficial in field settings, ensuring that your samples are prepared consistently for accurate analysis.
Additional accessories: These accessories allow an XRF operator make sample preparation process easier, faster and avoid cross contamination with other samples.
Additional Accessories:
Paper Funnel (PF-2024): Facilitates the easy and precise transfer of powdered samples into the cup, minimizing spillage and ensuring efficient sample handling (вставить фото).
The cup liner (CL307): The cup liner helps to press material with your finger to achieve a denser sample. Remember: the stronger the compression, the better the results. A more homogeneous and compacted material will provide greater precision and repeatability.
Plastic Measuring Spoon (TSP-05): Included with each cup, this tool helps prevent cross-contamination and keeps your hands clean during sample preparation (вставить фото).
QR Code Labels (QRC-19): Each cup comes with a 19 mm diameter round label featuring a unique sequential sample number, streamlining the organization and tracking of multiple samples (вставить фото).
Stainless Steel Sieve (SSS-08): Equipped with an 8 mm aperture, perforated bottom, and lid, this sieve ensures that only appropriately sized particles enter the cup, enhancing the quality and consistency of your samples (вставить фото).
With the XRF Sample Plastic Cups ELVATECH and its suite of accessories, you can trust that your sample preparation will be efficient, reliable, and tailored to meet the rigorous demands of XRF analysis
Instrument Compatibility
The following list shows the XRF sample plastic cups and additional accessories compatibilities and provided for reference purposes. Samples are available upon request to verify sample cup compatibilities.
The list of compatibilities with other manufacturers of:
XRF analyzers ELVATECH
XRF analyzers SciAps
XRF analyzers EVIDENT
XRF analyzers NITON
XRF analyzers Bruker
XRF analyzers HITACHI
Available Options
| SKU | Product name | Quantity in pack | Price | Quantity | |
|---|---|---|---|---|---|
| PSC30716-1000 | Plastic Sample Cup 30.7*12.00 mm | 1000 | $450.00 | ||
| PSC30716-10000 | Plastic Sample Cup 30.7*12.00 mm | 10000 | $4,000.00 | ||
| CL307-1000 | Cup liner | 1000 | $90.00 | ||
| CL307-10000 | Cup liner | 10000 | $800.00 | ||
| PF-2024-1000 | Paper Funnel | 1000 | $50.00 | ||
| PF-2024-10000 | Paper Funnel | 10000 | $400.00 | ||
| TSP-05-1000 | Plastic Measure Spoon (one spoon per cup) | 1000 | $270.00 | ||
| TSP-05-10000 | Plastic Measure Spoon (one spoon per cup) | 10000 | $2,400.00 | ||
| QRC-19-6000 | QR Code round label for plastic cup, sequential sample number, 19 mm diam | 6000 | $420.00 | ||
| QRC-19-20000 | QR Code round label for plastic cup, sequential sample number, 19 mm diam | 20000 | $1,200.00 | ||
| SSS-08-100 | Stainless Steel sieve, 8mm apperture, perforated with bottom and lid | 100 | $4,500.00 | ||
| SSS-08-200 | Stainless Steel sieve, 8mm apperture, perforated with bottom and lid | 200 | $8,000.00 |
Instructions:
Stage 1.
Take a container, a lid, a sealing ring and a QR code sticker and stick the sticker to the lid.
Stage 2.
Take XRF film (mylar, prolene, polypropylene etc which depends on your application https://elvatech.ca/product-category/consumables/thin-film-sample-support-windows/ ) and cover the container and after that cover this with the sealing ring.
Stage 3.
Ensure the film is undamaged and place the container, the lid and the sealing ring on a clean sheet of paper to prevent contamination of the XRF film.
Stage 4.
For convenient pouring of material into the plastic container, use a paper funnel PF-2024. This will also help prevent spillage around the cup, cross-contamination between different samples, and contamination of the part of the container where the XRF film is installed.
Stage 5.
For convenient pouring of material, we recommend using disposable 5-milliliter plastic spoons (TSP-05).
Stage 6.
Remove the paper funnel (PF-2024) from the container.
Stage 7.
Take the cup liner (CL307), cover the material in the container, and press it firmly with your finger to achieve a denser sample. Remember: the stronger the compression, the better the results. A more homogeneous and compacted material will provide greater precision and repeatability. Make sure to perform this process on a clean, disposable sheet of paper to avoid contamination, and be careful not to tear the XRF film. For optimal compaction, you can also use our presses with DIE sets: https://elvatech.ca/product-category/pressing-pelletizing/
Stage 8.
Clean the cup with a dry wipe or paper towel.
Stage 9.
Ensure the container is clean and cover it with the lid with the QR code (QRC-19). The cup (PSC30716) is done for testing.
Link to the YouTube channel of ELVATECH CANADA with the video review of the cups.
