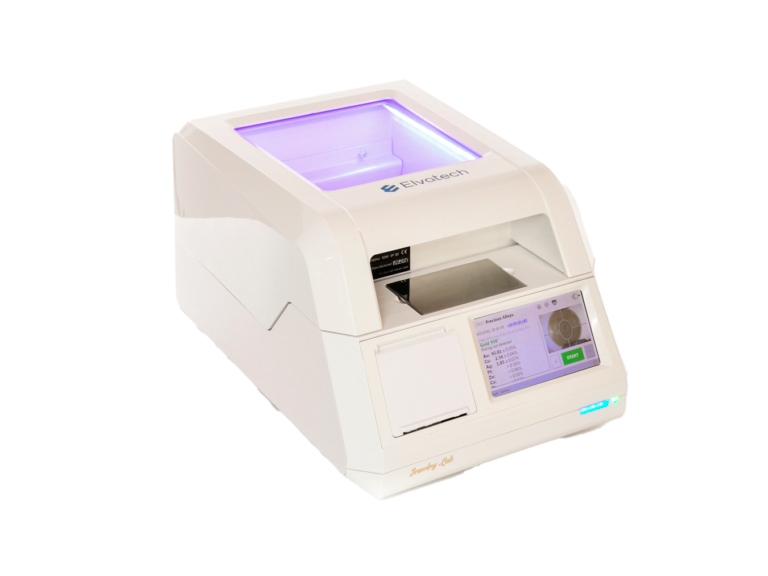

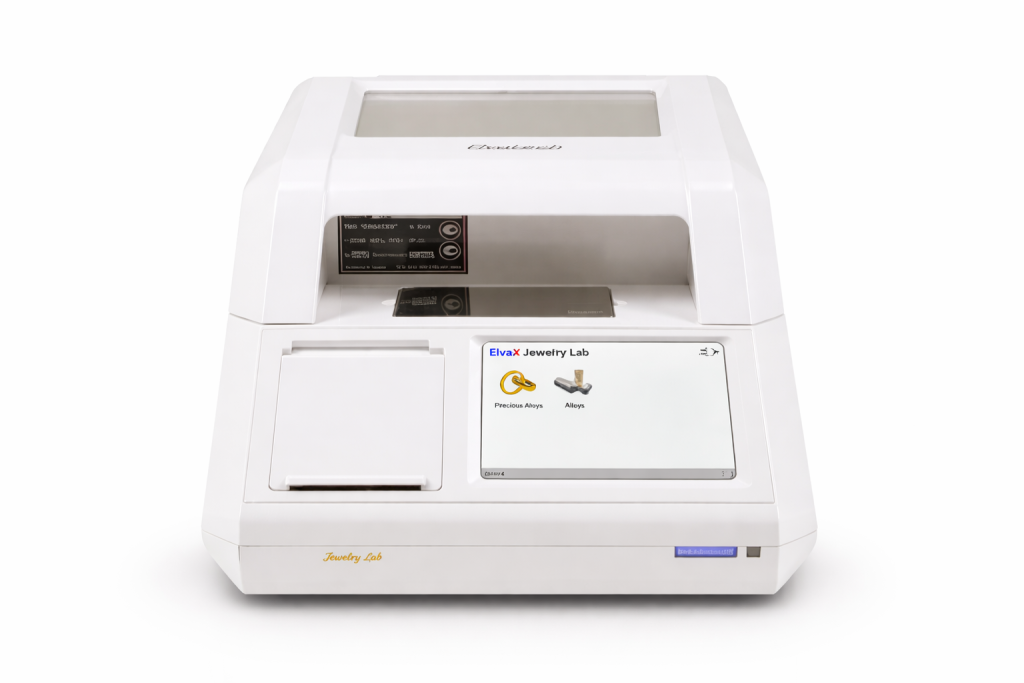

ELVATECH Jewelry Lab RoHS
Compact benchtop spectrometer for precise and accurate analysis in accordance with the RoHS directive
The ElvaX RoHS spectrometer was developed specifically for analyzing consumer products for compliance with the RoHS directive. The most important capability of ElvaX RoHS is automatic chlorine correction of calibration. This feature takes into account the influence of chlorine concentration in plastics while analysis of heavy metals. This mode uses a universal calibration for analysis of a wide range of plastics (PVC, PE, etc.) and helps to avoid possible errors when measuring chemical composition of unknown materials. This instrument also has an automatic correction of the effect of material thickness on the analysis results. The specialized ElvaX RoHS functions and high measuring speed allow this instrument to be the best solution for this application.
- Fast and accurate results
- User-friendly software
- Built-in screen for autonomous work
- Compact, does not require much room on your working space
- User-oriented design
- Lead glass for x-ray protection and customer display
General
Dimensions: 280 × 385 × 200 mm
Analytical chamber: 185 × 212 × 90 mm
Weight: 7 kg
Power supply: 90 – 240 V, 50/60 Hz
Power Consumption: 40 W
Battery: 6 hours of continuous operation
Thermal printer: optional
Software
Operating System: Windows CE
Quantitative Analysis: Fundamental Parameters Method (FPA), Empirical Calibrations
Interfaces
Data transfer: 2 USB ports, Micro SD card, Ethernet
Data input: touch screen, keyboard, mouse
DigiX-40 digital x-ray generator (optional digiX-50)
Anode: W
Voltage: 40 kV (50 kV)
Current: 200 μA
Power: 4 W
5-position collimator changer from 1 to 10 mm
Detector
Type: Fast SDD (Si-PIN option)
Area: 30 mm² (6 mm² for Si-PIN)
Resolution: < 140 eV (165 eV for Si-PIN) on the Mn Ka line
Electronics
DPP: DAS (Dynamically Adaptive Shaping)
Related Products
ElvaX S Lab
ElvaX S Lab is designed especially for analysis of petrochemicals for sulfur content in wide concentration range
ElvaX Pro
The most powerful XRF spectrometer in the ElvaX family for the most complicated analytical applicationsSensitivity
Due to perfect sensitivity of SDD detector, the spectrometer demonstrates detection of hazardous elements in concentrations ten times lower than the minimum required by the RoHS directive.
Speed
The required duration time of analysis is only a few seconds due to a high-speed digital pulse processor with DAS technology and a specially designed conversion filter.
Functionality
Video camera, 5-position collimator changer from 1 to 10 mm, built-in computer and printer, possibility of full-featured operation when connected to a PC.
