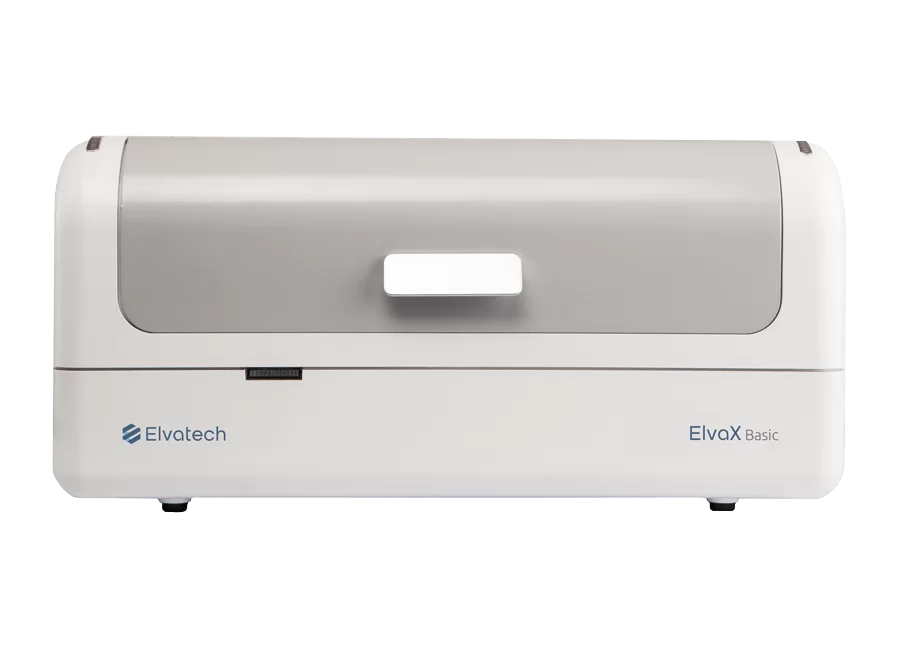

ElvaX Basic
Affordable basic XRF spectrometer for lab results
ElvaX Basic is a compact affordable and effective Energy Dispersive X-ray Fluorescence (EDXRF) analyser perfectly suited for both qualitative and quantitative analysis of minerals, liquids and other different materials in the range of chemical elements from S (Z=16) to U (Z=92) in a wide range of concentrations and great limits of detections.
- Affordable
- Fast, precise and accurate
- Compact. Requires no much space on your desk
- Client-oriented design
- High-effective patented analytical software
ElvaX Basic is an affordable and effective high-performance spectrometer which is perfect for such applications as jewelry, precious metals sorting and express quality assurance and quality control (QAQC).
ElvaX Basic includes advanced analytical software with user friendly interface, which allows even novice operators to make any analysis from seconds to minutes!
In your lab or in the manufacturing conditions, an affordable ElvaX Basic analyser allows you to get the precise analysis with great limits of detection like an expensive powerful benchtop analyser.
- PMI
- RoHS and Weee
- Precious metals
- Alloy
- Sulfur in Oil
- Mining and Exploration
- Environmental monitoring
- Archeometry
Digital X-Ray Source digiX-40
Anode: W
Voltage: 40 kV
Current: 200 uAmp
Power: 4 W
X-Ray Detector
Type: Si-PIN (optional SDD)
Area: 6 mm2 (25 mm2 for SDD)
Energy resolution: 165 eV at Mn Kα (140 eV for SDD)
Electronics
DPP: proprietory DAS (Dynamically Adaptive Shaping) type, 80 MHz sampling rate
MCA: 4096 channels
General
Dimensions: 430 х 340 х 200 mm
Weight: 13 kg
Power supply: 90 – 240 VAC, 50/60 Hz
Power consumption: 40 W
Software
Operating system: Windows XP/Vista/7/8/10
Analysis algorithms: Fundamental parameters (FPA), Empirical (regression) calibrations, Manual spectra comparison
Related Products
Rotary Rock Sampler
The Rotary Rock Sampler is designed to produce consistent, representative samples from crushed rocks, minerals and other inert, dry materials. Its controlled rotary motion and metered feed help reduce sampling bias and human error, making it ideal for XRF/XRD and geochemical analysis. Compact and durable, it can be used both in the field and in the laboratory, with easy cleaning between batches to prevent cross-contamination.
Portable Beater Mill
Portable Beater Mill designed for on-site sample preparation. Suitable for rapid grinding of rocks, minerals and other inert, dry materials. Delivers consistent particle size for further laboratory analysis (XRF/XRD, assay, geochemical testing). Not intended for organic, wet or flammable materials. Rugged, easy to transport, ideal for fieldwork and small laboratories.
Field Portable 4Ton Pellet Press
The field portable press is designed to allow proper light element analysis for soil and rock samples in the field.
SQM-0.4L Planetary Ball Mill
SQM-0.4L oil-sealed planetary ball mill is an essential device for mixing, fine grinding, sample preparation, nano-material dispersion, new product development and small batch production of high-tech materials.
Accuracy
Hi-Tech advanced hardware and patented software allow the EvaX Basic to demonstrate the most precise and accurate results of different materials.
Speed
Dynamically Adaptive Shaping (DAS) DPP designed by Elvatech enables the ElvaX Basic the fastest Si-PIN diode detector on the segment
Stability
Due to the digiX-40 digital X-Ray tube, automatic temperature correction, automatic drift correction and automatic calibration adjustment, ElvaX Basic possesses long-life reproducibility of measurements without the need to make a re-calibration of the spectrometer.
F.A.Q.
Even the most reliable equipment from ELVATECH may require service or repair. However, you need not worry as ELVATECH CANADA LTD. offers warranty and post-warranty service for XRF spectrometers and analyzers at our company’s service center in Edmonton as well as at our authorized service center.
At Elvatech, our service concept is not centered around generating income but rather is a loyalty program for our customers. We offer fast, efficient, and non-profit maintenance and repair for our XRF spectrometers. This approach significantly reduces the cost of using our XRF spectrometers and analyzers and provides maximum convenience for our customers.
ELVATECH CANADA sells, rents, repairs, and provides service for XRF spectrometers and analyzers to customers all across Canada. Delivery is carried out by courier services directly from our head office in Edmonton based on CPT, Incoterms 2020.
Delivery time can vary from 1 to 12 weeks depending on the type of spectrometer, installed modes and calibrations, as well as availability of instruments in our stock.
Equipment is usually shipped after 100% payment is received to our bank account. Individual payment terms are provided for regular partners and dealers.
