Horizon

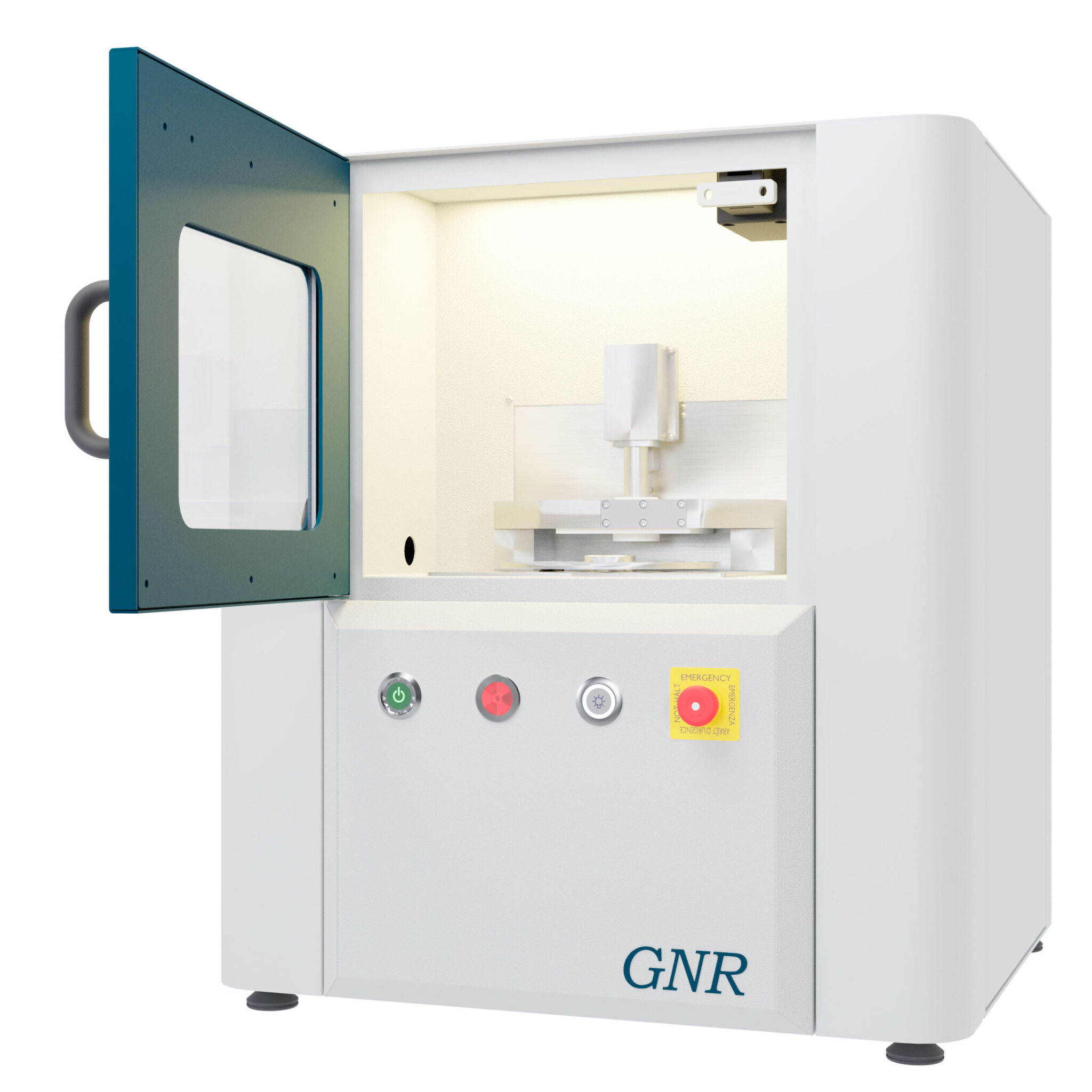

Horizon, the TXRF Benchtop
Horizon is the new Benchtop Total Reflection X-Ray Fluorescence Spectrometer (TXRF) for multi elemental qualitative and quantitative analyses for major constituents and ultra-trace in suspension as well as liquid samples.
TXRF is a type of Energy Dispersive X-Ray Fluorescence (EDXRF) in which the X-Ray beam strikes the sample, deposited as a thin layer on a carrier, at a very small incident angle, in order to exploit the excitation enhancement given by the total reflection effect. As far as the sample is thin enough (thin film approximation), the technique’s main strengts are:
- simultaneous multi-element analysis from Na to Pu
- no matrix effect
- no matrix-dependent calibration curves
- improved detection limits (LOD) down to ng/g or lower
- minimum amount of sample
- microanalysis capabilities
Horizon is the state of the art of the Total Reflection X-Ray Fluorescence spectrometer and it is equipped with all the most modern technical components, which grant accuracy, precision, safety and easiness of use.
It is a powerful tool for trace analysis at an affordable price.
- Environmental Analysis: water, dust, sediments, aerosol (ISO/TS 18507:2015, ISO 20289:2018)
- Medical/Pharma: toxic elements in biological fluids and tissue samples, catalyst residues
- Forensic Science: analysis of extremely small sample of quantities
- Pure chemicals: acids, bases, salts, solvents, water, ultrapure reagents
- Oils and greases: crude oil, essential oil, fuel oil, gasoline, jet fuel
- Pigments: ink, oil paints, powder
- Nuclear Industry: measurements of radioactive elements
X-Ray Generator
- Maximum Output Power: 600 W
- Max Output Voltage: 40 kV
- Max Output Current: 15 mA
X-Ray Tube
- Mo anode provided as standard
- Other anodes available as options
- Focus: 0.4 x 8 mm FF (Fine Focus)
Detector
- Active area: 40 mm2 as standard. (50 mm2 as option)
- Energy resolution: ≤ 133 eV FWHM @Mn-Ka (1 μs peaking time)
Sample Holder
- 12 position multi-sample holder
Atmosphere
- Air or He flux
Case
- External Dimension: 600 mm, 650 mm, 555 mm
- Weight: 85 kg
Cooling
- External Compact Low Noise Version
Software Informations
- Least square Marquardt fit procedure for the area calculation (spectral analysis)
- Automatic/manual search function
- Manual or automatic calibration of energy
- Quantification via an internal standard using theoretical and experimental sensitivity curves
