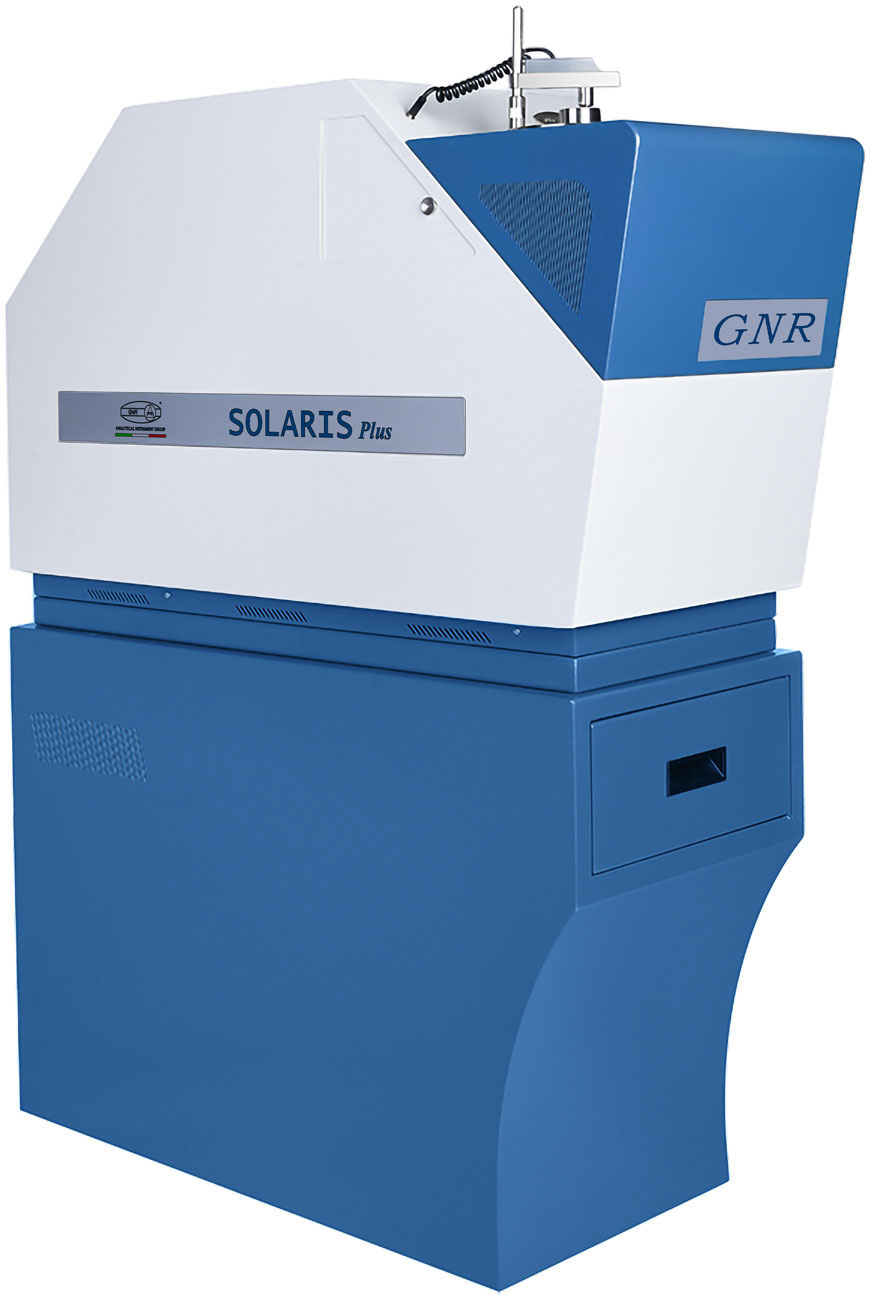

S5 Solaris Plus
Laboratory CMOS Based Optical Emission Spectrometer
With more than 600 units installed all over the world, S5 Solaris Plus (known as SCP) is the most popular model of GNR range of optical emission spectrometer.
S5 SCP represent the ideal solution in any working place (Office, Laboratory, Stock, Production), thanks to the reduced dimensions and to the quality of the components.
GNR OES R&D Technicians have introduced during the years several innovative and advanced technological solutions, which makes S5 SCP system fully suitable not only for general purpose applications but also for specific demands.
S5 SCP instrument is offered as standard configuration as well as it can be easily customized in terms of optical parameters, elements and analytical range to fulfil the most strictly analytical demands. It is the perfect unit to perform multi-matrix analysis on both Ferrous and Not Ferrous Alloys.
- Iron and Steel and its alloys
- Low Nitrogen in Fe Matrix
- Soluble and Insoluble content in Low Alloy Steel
- Aluminum and its alloys
- Sodium / Lithium in Al Matrix
- Copper and its alloys
- Nickel and its alloys
- Cobalt and its alloys
- Magnesium and its alloys
- Lead and its alloys
- Tin and its alloys
- Titanium and its alloys
- Zinc and its alloys
Optical System
- Optical Air System: Multi High Resolution CMOS solid state detectors
- High luminosity holographic grating
- Equipped with Vacuum System
Other Information
- Power Supply: 110/220 V AC 16 A 1 KW
- Dimensions: W 60 x D 36 x H 62 cm
- Weight: 100 Kg (w/o stand)
Software Informations
- Analysis
- Controlled Standardization
- Printing of the Certificates (customizable)
- Determination of alloys in accordance to international norms (UNI, ASTM, DIN, …)
- Network linking and remote control
- Data Export
- Equipment and Spark Check
- Multi-User Access
- Software Remote Update
Quality control
in metal analysis using OES/RDE
Material properties
control using XRD/TXRF
100%
Made in Italy
F.A.Q.
Even the most reliable equipment from ELVATECH may require service or repair. However, you need not worry as ELVATECH CANADA LTD. offers warranty and post-warranty service for spectrometers and analyzers at our company’s service center in Edmonton as well as at our authorized service center.
At Elvatech, our service concept is not centered around generating income but rather is a loyalty program for our customers. We offer fast, efficient, and non-profit maintenance and repair for our spectrometers. This approach significantly reduces the cost of using our spectrometers and analyzers and provides maximum convenience for our customers.
ELVATECH CANADA sells, rents, repairs, and provides service for XRF spectrometers and analyzers to customers all across Canada. Delivery is carried out by courier services directly from our head office in Edmonton based on CPT, Incoterms 2020.
Delivery time can vary from 1 to 12 weeks depending on the type of spectrometer, installed modes and calibrations, as well as availability of instruments in our stock.
Equipment is usually shipped after 100% payment is received to our bank account. Individual payment terms are provided for regular partners and dealers.
