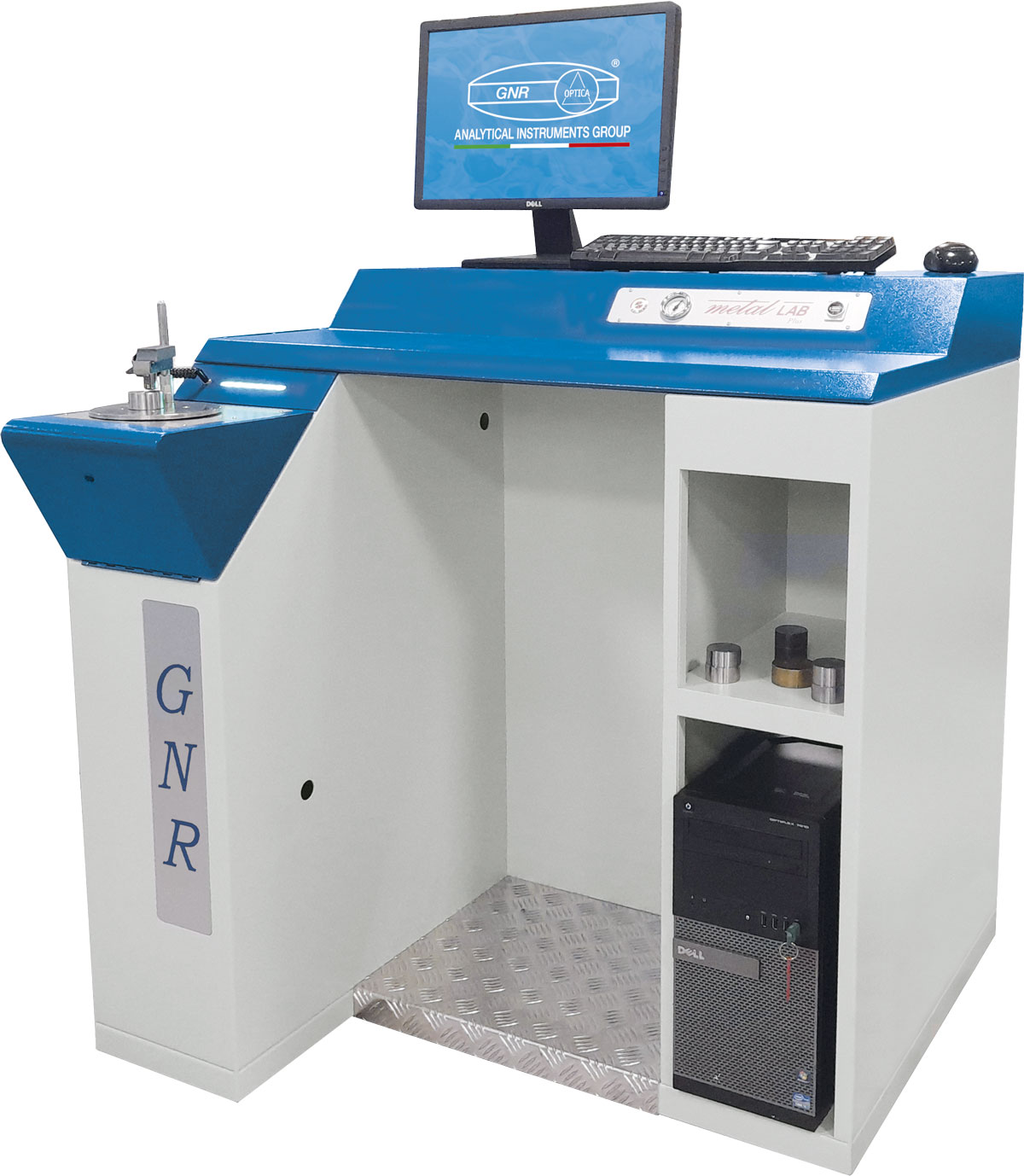

S7 Metal Lab Plus
S7 the most suitable solution for your Laboratory
Metal Lab Plus is the perfect solution able to cover multi matrix analysis requests and at the same time granting the flexibility of easy upgrade for future needs.
S7 MLP is available with different configurations, able to analyze any different kind of metal alloys, ferrous and non ferrous ones.
S7 MLP instrument is offered as standard configuration as well as it can be easily customized in terms of optical parameters, different gratings and detectors, elements and analytical range to fulfil the most strictly analytical demands.
As an option, S7 MLP could be set up with optional external arm with the aim to check bigger samples in ferrous and non ferrous alloys.
- Iron and Steel and its alloys
- Low Nitrogen in Fe Matrix
- Soluble and Insoluble content in Low Alloy Steel
- Aluminum and its alloys
- Sodium / Lithium in Al Matrix
- Copper and its alloys
- Nickel and its alloys
- Cobalt and its alloys
- Magnesium and its alloys
- Lead and its alloys
- Tin and its alloys
- Titanium and its alloys
- Zinc and its alloys
Optical System
- Optical Air System: Multi High Resolution CMOS solid state detectors
- High luminosity holographic grating
- Equipped with Vacuum System
Other Information
- Power Supply: 110/220 VAC 16A 2.5 KW
- Dimensions: W 93 x D 94 x H 101 cm
- Weight: 160 kg
Software Informations
- Analysis
- Controlled Standardization
- Printing of the Certificates (customizable)
- Determination of alloys in accordance to international norms (UNI, ASTM, DIN, …)
- Network linking and remote control
- Data Export
- Equipment and Spark Check
- Multi-User Access
- Software Remote Update
Quality control
in metal analysis using OES/RDE
Material properties
control using XRD/TXRF
100%
Made in Italy
