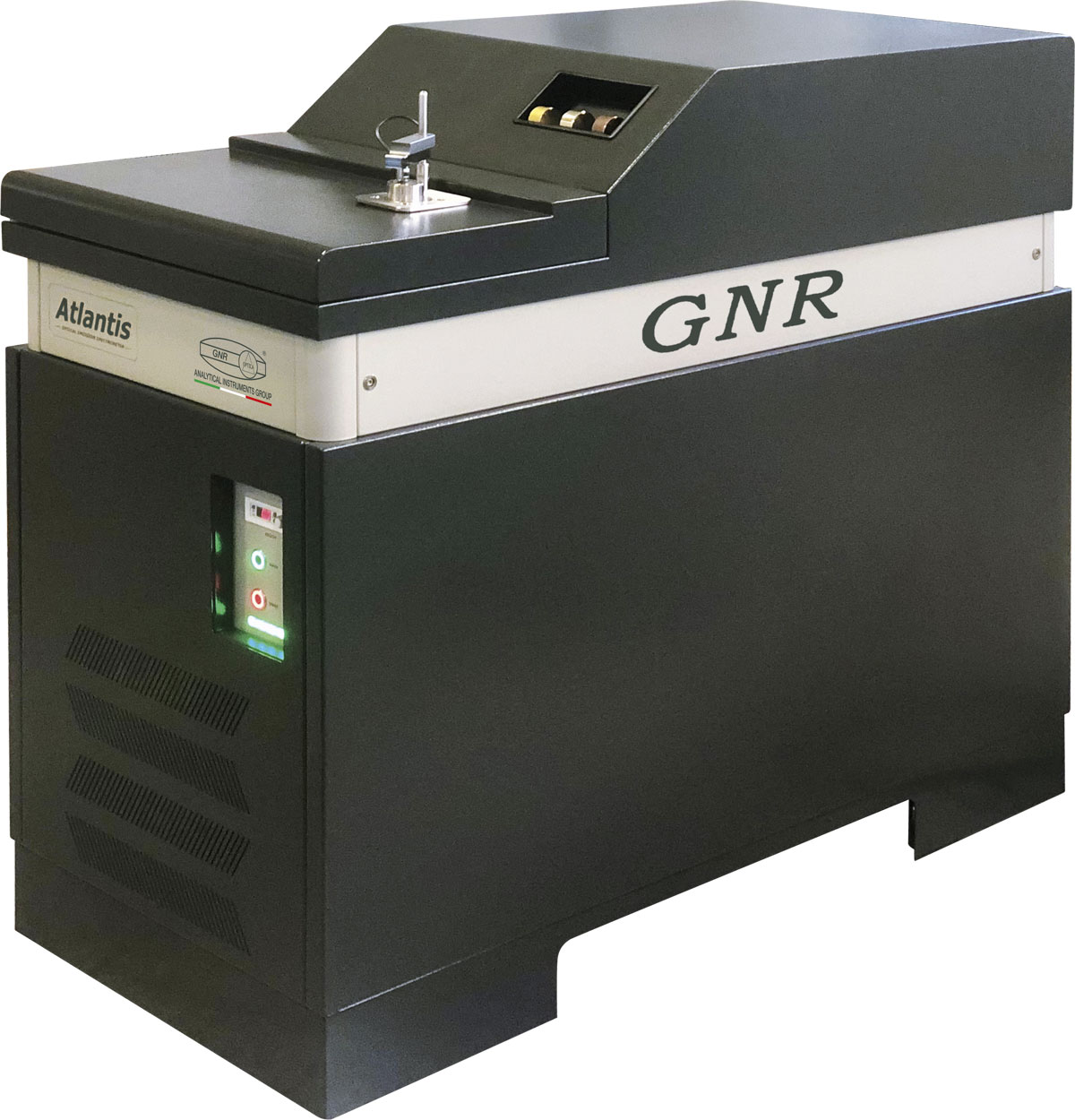

S9 Atlantis
Top Laboratory Optical Emission Spectrometer
The new S9 Atlantis is the result of 40 years of experience in developing and manufacturing optical spark emission spectrometers. It can be considered as the top laboratory metal analyser with improved analytical performances, highly flexibility and easy to use.
Manufactured with the higher quality components, S9 Atlantis is develop for any kind of analytical task. It is well suitable for routine analysis in the process control, for monitoring in quality control as well as in research and development for complex or specific analytical needs.
S9 Atlantis optical system combines the specific advantages of both photomultiplier tubes and CMOS detector systems. It can be equipped with Full PMT, Full CMOS or Hybrid configuration in order to better address end user technical requirements and budget.
- Iron & steel alloys and traces
- Low Nitrogen in Fe Matrix
- Oxygen in Steels
- Soluble and Insoluble content in Low Alloy Steel
- Aluminum alloys and traces
- Sodium / Lithium in Al Matrix
- Copper alloys and traces
- Oxygen in Copper
- Nickel alloys and traces
- Cobalt alloys and traces
- Magnesium alloys and traces
- Tin alloys and traces
- Lead alloys and traces
- Titanium alloys and traces
- Nitrogen / Oxygen / Hydrogen in Ti Matrix
- Further Applications upon request
Optical System
- Paschen Rouge mounting
- High luminosity holographic grating depending on the analytical configuration
- Equipped with Vacuum System
Source
- Multi-frequency spark source
- Excitation parameters controlled by computer
- HEPS (High Energy Pre Spark) from 200 to 1000 Hz
Other Information
- Power Supply: 110/220 V AC 16 A 1 KW
- Dimensions: W 60 x D 130 x H 120 cm
- Weight: ~ 250 Kg
Software Informations
- Analysis
- Controlled Standardization
- Printing of the Certificates (customizable)
- Determination of alloys in accordance to international norms (UNI, ASTM, DIN, …)
- Network linking and remote control
- Data Export
- Equipment and Spark Check
- Multi-User Access
- Software Remote Update
Quality control
in metal analysis using OES/RDE
Material properties
control using XRD/TXRF
100%
Made in Italy
F.A.Q.
Even the most reliable equipment from ELVATECH may require service or repair. However, you need not worry as ELVATECH CANADA LTD. offers warranty and post-warranty service for spectrometers and analyzers at our company’s service center in Edmonton as well as at our authorized service center.
At Elvatech, our service concept is not centered around generating income but rather is a loyalty program for our customers. We offer fast, efficient, and non-profit maintenance and repair for our spectrometers. This approach significantly reduces the cost of using our spectrometers and analyzers and provides maximum convenience for our customers.
ELVATECH CANADA sells, rents, repairs, and provides service for XRF spectrometers and analyzers to customers all across Canada. Delivery is carried out by courier services directly from our head office in Edmonton based on CPT, Incoterms 2020.
Delivery time can vary from 1 to 12 weeks depending on the type of spectrometer, installed modes and calibrations, as well as availability of instruments in our stock.
Equipment is usually shipped after 100% payment is received to our bank account. Individual payment terms are provided for regular partners and dealers.
