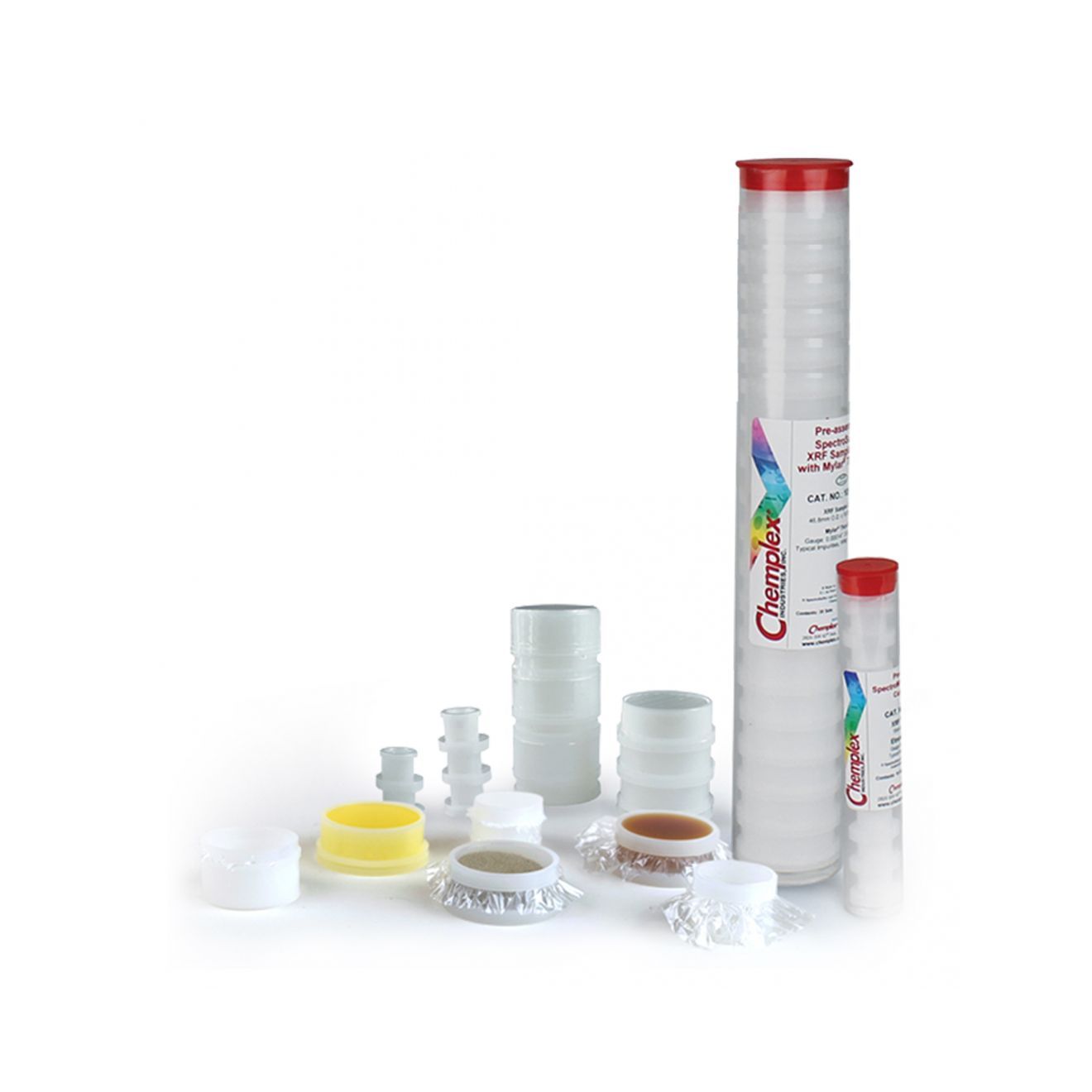

SERIES 10P: PreAssembled Sample Cups

For the ultimate convenience, Chemplex XRF Sample Cups and Thin-Films are available PreAssembled.

Features

• Thin-Film already attached to the XRF Sample Cup

• XRF Sample Cups stacked in a tube for maximum Thin-Film Protection

• Optional Dispensing Stand

Made in USA

Stackable Pre-assembled XRF Sample cups are available with a user choice of thin-film material and thickness. They are designed to vertically stack with the thin-film window safely nestled and protected by adjacent sample cups for maximum thin-film window protection. Please contact our sales team at sales@chemplex.com for more information.

No

Available Options

SKUOutside Dia.Max O.D.ApertureVolTypeThicknessHeightQty/PackQuantity
10P-30120.73" (18.4mm)0.94"X0.78" (23.9X19.8mm)0.53" (13.3mm)1.8mlMylar®2.5µm0.76" (19.4mm)10
10P-30140.73" (18.4mm)0.94"X0.78" (23.9X19.8mm)0.53" (13.3mm)1.8mlMylar®3.6µm0.76" (19.4mm)10
10P-30160.73" (18.4mm)0.94"X0.78" (23.9X19.8mm)0.53" (13.3mm)1.8mlMylar®6.0µm0.76" (19.4mm)10
10P-30170.73" (18.4mm)0.94"X0.78" (23.9X19.8mm)0.53" (13.3mm)1.8mlProlene®4.0µm0.76" (19.4mm)10
10P-3017A0.73" (18.4mm)0.94"X0.78" (23.9X19.8mm)0.53" (13.3mm)1.8mlProlene®3.0µm0.76" (19.4mm)10
10P-30190.73" (18.4mm)0.94"X0.78" (23.9X19.8mm)0.53" (13.3mm)1.8mlPolypropylene6.0µm0.76" (19.4mm)10
10P-30240.73" (18.4mm)0.94"X0.78" (23.9X19.8mm)0.53" (13.3mm)1.8mlPolypropylene12.0µm0.76" (19.4mm)10
10P-30250.73" (18.4mm)0.94"X0.78" (23.9X19.8mm)0.53" (13.3mm)1.8mlEtnom®3.0µm0.76" (19.4mm)10
10P-30290.73" (18.4mm)0.94"X0.78" (23.9X19.8mm)0.53" (13.3mm)1.8mlEtnom®2.5µm0.76" (19.4mm)10
10P-30310.73" (18.4mm)0.94"X0.78" (23.9X19.8mm)0.53" (13.3mm)1.8mlEtnom®2.0µm0.76" (19.4mm)10
