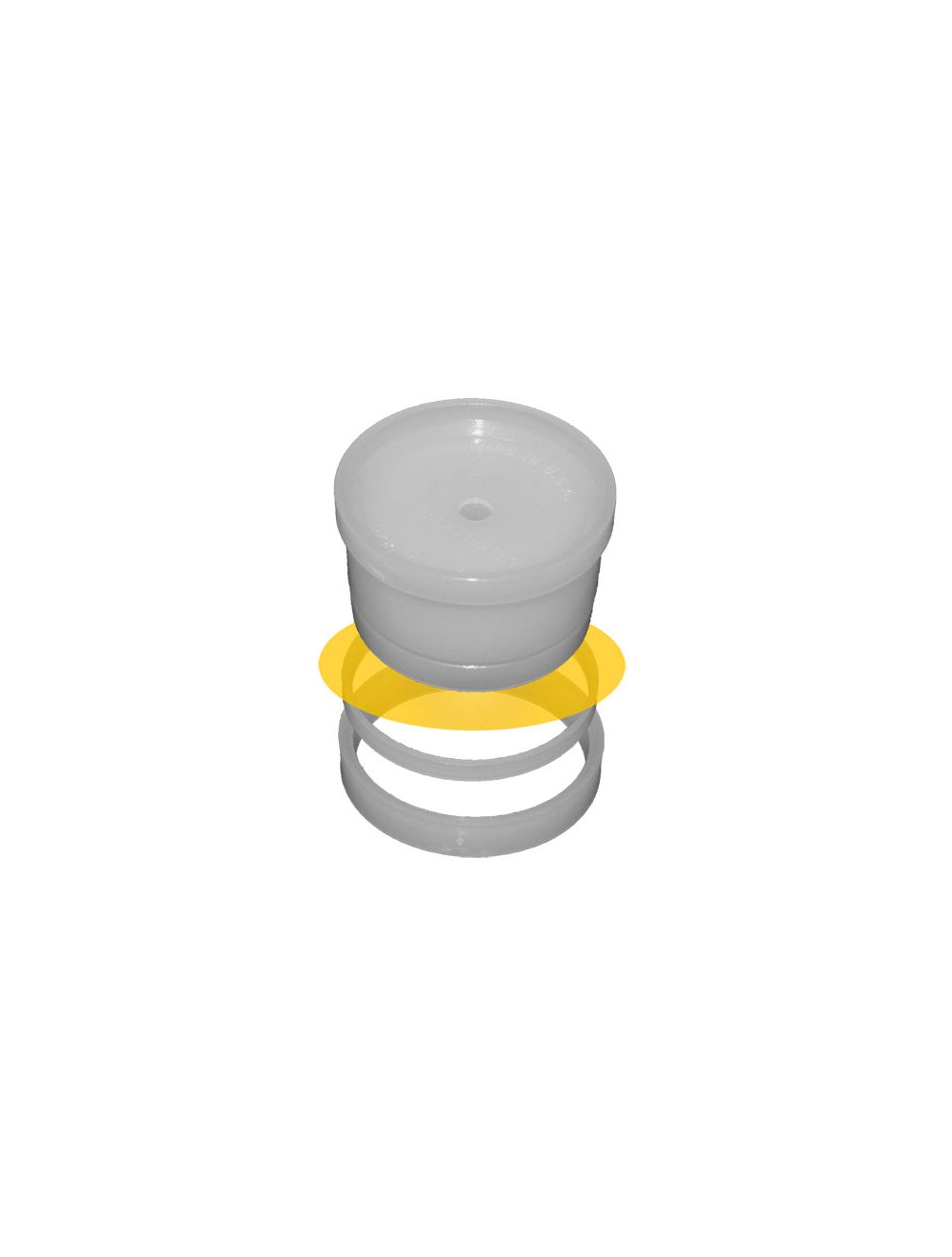

SERIES 1800: Single Open-Ended Sample Cups with ThermoPlastic® seal venting
The upper portion of the Cell is formed with a recession that serves as an external overflow reservoir for collecting and retaining thermally sensitive liquid samples. An easily rupturable ThermoPlastic® seal is centrally located to form a passageway from within the sample cup directly to the external overflow reservoir. Pressure equalization is easily established and maintained for taut thin-film sample support sample planes.
Features
- Single Open-ended
- External Overflow Reservoir
- ThermoPlastic® seal venting
- “Snap-On Ring” thin-film attachment
- Serrated edged “Snap-On Rings” alternatively available to facilitate thin-film trimming
Package
- 100 sets per package
Quantity Discount
- Order 20-39 packages and receive $5.00 off standard price per package
- Order 40 or more and receive $10.00 off standard price per package
Made in USA
Price range: $110.00 through $290.40
The upper portion of the Cell is formed with a recession that serves as an external overflow reservoir for collecting and retaining thermally sensitive liquid samples. An easily rupturable ThermoPlastic® seal is centrally located to form a passageway from within the sample cup directly to the external overflow reservoir. Pressure equalization is easily established and maintained for taut thin-film sample support sample planes.
Collar pre-affixes a thin-film substrate to support evaporated droplets, micro powdered samples or small solids.
The “Snap-On Ring” and Cell neck utilize the unique Chemplex® “bead-to-indent” geometry responsible for firmly securing thin-film sample support window planes to the sample cup Cell. In combination they form wrinkle-free sample planes and leak-resistant seals.
Alternately available in nominal 32mm diameter sample cups with integrated serrated edged "Snap-On Rings" that allow extraneous thin-film trimming close to the sample cup. Order by catalog number followed by "SE".
Instrument Compatibility
The following table lists some known sample cup compatibilities and provided for reference purposes. This is not an exhaustive list and serves as a guideline. Please check dimensions of the sample holder and compare them to the sample cup dimensions. Samples are available upon request to verify sample cup compatibilities.
| Manuf | Models | Sample Cup Cat No | |
|---|---|---|---|
| Bruker | S2 Puma | 2140, 2143, 2144 & 2154 | |
| Bruker | S2 Puma w/ Xflash | 2143, 2144 & 2154 | |
| Bruker | S2 Ranger | 2143 | |
| Bruker | S4 | 2140 | |
| Bruker | S8 w/ Flex Loader | 2143, 2144 & 2154 | |
| Bruker | S8 Tiger | 2143, 2144, 2154, 1095 & 2195 | |
| Horiba | SLFA Units | 1850, 1083 & 1084 | |
| Horiba | 6100/6800/60A | 1086 & 1087 | |
| Horiba | Mesa 7220 | 1083, 1850 & 3130 ( use 7220-P or 7220-S locating ring) | |
| Innov-X | Hand Held Units | 1330, 1330-SE & 1340 | |
| Oxford | Lab-X | 1940L, 1940-ox | |
| Oxford | MDX | 1935-ox, 1940-ox | |
| Oxford | Replacement Cells 54-LX6922 | 1440L | |
| Oxford | Replacement Cells & Covers: 54-CK-100 | 1935-ox | |
| Oxford | Replacement Cells & Covers: 54-CK-100 and L242 Holder | 1940-ox | |
| Malvern Panalytical | Epsilon 3XL, MiniPal | 2135 | |
| Malvern Panalytical | Axios | P2 | |
| Malvern Panalytical | Epsilon 5 | 2145, 2146 | |
| Malvern Panalytical | Venus 200 | 1095, 2195 | |
| Rigaku | Mini-Z | 2140 | |
| Rigaku | Primus, Rix, ZSX-100 | 1095, 2195 | |
| Spectro | XEPOS, Xepos Low S, Xepos IQ, X-Lab 2000, 200, 200T Titan, Phoenix | 1060, 1065, 1070, 1075, Series 1300, Series 1400, Series 1500, Series 1700, Series 1800, 1930, 1930-SE, 1940, 2131, 2135 | |
| Spectro | IQ | 2132 | |
| Spectro | Phoenix II | 2131 | |
| Spectro | Scout | 3106, 3110, 3115 & 3120 | |
| Thermo | Advant'x | 2146 | |
| Xenemetrix | X-Calibur, X-Cite | 2131, 2132, 2132S, 1540 | |
| XOS | Sindie®, Clora, Signal, HD Maxine, Phoebe, Petra | 1083, 1084 & 1850 | |
| XOS | Sindie 3rd Generation | 3130 & 3132 | |
Recycling
Chemplex® XRF sample cups are made from virgin HDPE and can be recycled. Please contact your local county or municipality to determine your local recycling options and procedures.
® Sindie, Clora, HD Maxine, Phoebe, Signal are registered trademarks of XOS Inc.
Available Options
| SKU | Open Ends | Outside Dia. | Max O.D. | Aperture | Vol | Height | Price | Quantity | |
|---|---|---|---|---|---|---|---|---|---|
| 1830 | Single | 1.22" (31.0mm) | 1.22" (31.0mm) | 0.96" (24.4mm) | 7 | 0.87" (22.1mm) | $110.00 | ||
| 1830-SE | Single | 1.22" (31.0mm) | 1.22" (31.0mm) | 0.96" (24.4mm) | 7 | 0.87" (22.1mm) | $110.00 | ||
| 1840 | Single | 1.54" (39.1mm) | 1.54" (39.1mm) | 1.25" (31.8mm) | 12 | 0.93" (23.6mm) | $132.00 | ||
| 1850 | Single | 1.69" (42.9mm) | 1.87" (47.5mm) | 1.41" (35.8mm) | 13 | 0.77" (19.6mm) | $290.40 |
