SERIES 3100: Chemplex SpectroMicro® XRF Sample Cups
Previous
Next
Vented Snap-On Cap equalizes pressure differentials within the Cell and sample chamber to maintain a taut thin-film sample support plane.
Features
- Small volume capacities
- Utilizes FunnelShape technology
- 6 to 20 mm diameter sample planes
- Fits into 32 mm diameter sample holders
- External Overflow Reservoir
Quantity Discount
- Order 20-39 packages and receive $5.00 off standard price per package
- Order 40 or more and receive $10.00 off standard price per package
Made in USA
Price range: $154.00 through $338.80
Vented Snap-On Cap equalizes pressure differentials within the Cell and sample chamber to maintain a taut thin-film sample support plane.
Cell interior integrates a FunnelShape™ configuration for introducing and containing powdered, solid or liquid sample substances. The larger conically shaped upper portion of the funnel allows and facilitates sample introduction. The lower cylindrically shaped spout of the funnel represents the actual sample chamber and its diameter is expressed as the aperture. Select the sample cup size by matching the aperture diameter to the volume of sample available for analysis.
The Collar is used to secure a thin-film sample support window substance to the Cell and designed for acceptance by 32mm sample cup holders.
Select the diameter of the aperture from the catalog number. The last two digits of the catalog number reflect the aperture diameter of the SpectroMicro® sample cup funnel. The funnel configuration guides the sample toward the thin-film sample window.

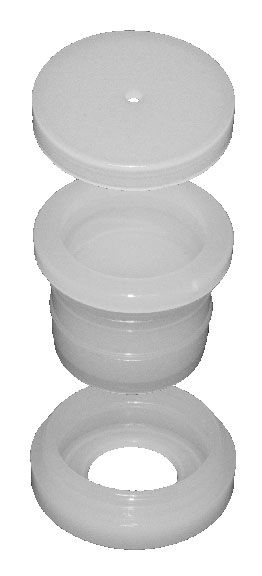

Note: A set consists of a cell, vented cap and collar
Registered U.S. Patent No: 8,404,197
® SpectroMicro is a registered trademark of Chemplex Industries, Inc.
™ FunnelShape is a trademark of Chemplex Industries, Inc.
Instrument Compatibility
The following table lists some known sample cup compatibilities and provided for reference purposes. This is not an exhaustive list and serves as a guideline. Please check dimensions of the sample holder and compare them to the sample cup dimensions. Samples are available upon request to verify sample cup compatibilities.
| Manuf | Models | Sample Cup Cat No | |
|---|---|---|---|
| Bruker | S2 Puma | 2140, 2143, 2144 & 2154 | |
| Bruker | S2 Puma w/ Xflash | 2143, 2144 & 2154 | |
| Bruker | S2 Ranger | 2143 | |
| Bruker | S4 | 2140 | |
| Bruker | S8 w/ Flex Loader | 2143, 2144 & 2154 | |
| Bruker | S8 Tiger | 2143, 2144, 2154, 1095 & 2195 | |
| Horiba | SLFA Units | 1850, 1083 & 1084 | |
| Horiba | 6100/6800/60A | 1086 & 1087 | |
| Horiba | Mesa 7220 | 1083, 1850 & 3130 ( use 7220-P or 7220-S locating ring) | |
| Innov-X | Hand Held Units | 1330, 1330-SE & 1340 | |
| Oxford | Lab-X | 1940L, 1940-ox | |
| Oxford | MDX | 1935-ox, 1940-ox | |
| Oxford | Replacement Cells 54-LX6922 | 1440L | |
| Oxford | Replacement Cells & Covers: 54-CK-100 | 1935-ox | |
| Oxford | Replacement Cells & Covers: 54-CK-100 and L242 Holder | 1940-ox | |
| Malvern Panalytical | Epsilon 3XL, MiniPal | 2135 | |
| Malvern Panalytical | Axios | P2 | |
| Malvern Panalytical | Epsilon 5 | 2145, 2146 | |
| Malvern Panalytical | Venus 200 | 1095, 2195 | |
| Rigaku | Mini-Z | 2140 | |
| Rigaku | Primus, Rix, ZSX-100 | 1095, 2195 | |
| Spectro | XEPOS, Xepos Low S, Xepos IQ, X-Lab 2000, 200, 200T Titan, Phoenix | 1060, 1065, 1070, 1075, Series 1300, Series 1400, Series 1500, Series 1700, Series 1800, 1930, 1930-SE, 1940, 2131, 2135 | |
| Spectro | IQ | 2132 | |
| Spectro | Phoenix II | 2131 | |
| Spectro | Scout | 3106, 3110, 3115 & 3120 | |
| Thermo | Advant'x | 2146 | |
| Xenemetrix | X-Calibur, X-Cite | 2131, 2132, 2132S, 1540 | |
| XOS | Sindie®, Clora, Signal, HD Maxine, Phoebe, Petra | 1083, 1084 & 1850 | |
| XOS | Sindie 3rd Generation | 3130 & 3132 | |
Recycling
Chemplex® XRF sample cups are made from virgin HDPE and can be recycled. Please contact your local county or municipality to determine your local recycling options and procedures.
® Sindie, Clora, HD Maxine, Phoebe, Signal are registered trademarks of XOS Inc.
Available Options
| SKU | Open Ends | Outside Dia. | Max O.D. | Aperture | Vol | Height | Price | Quantity | |
|---|---|---|---|---|---|---|---|---|---|
| 3106 | Double | 1.20" (30.5mm) | 1.20" (30.5mm) | 0.24" (6mm) | 0.22 | 0.99" (25.1mm) | $338.80 | ||
| 3110 | Double | 1.20" (30.5mm) | 1.20" (30.5mm) | 0.39" (10.0mm) | 0.5 | 0.99" (25.1mm) | $154.00 | ||
| 3115 | Double | 1.20" (30.5mm) | 1.20" (30.5mm) | 0.59" (15mm) | 1 | 0.99" (25.1mm) | $154.00 | ||
| 3120 | Double | 1.20" (30.5mm) | 1.20" (30.5mm) | 0.79" (20.0mm) | 1.5 | 0.91" (23.1mm) | $314.60 | ||
| 3130 | Single | 0.73" (18.4mm) | 0.94"X0.78" (23.9X19.8mm) | 0.53" (13.3mm) | 1 | 0.76" (19.4mm) | $314.60 | ||
| 3132 | Single | 0.73" (18.4mm) | 0.94"X0.78" (23.9X19.8mm) | 0.53" (13.3mm) | 1 | 0.76" (19.4mm) | $314.60 | ||
| 3135 | Single | 0.78" (19.8mm) | 0.94"X0.78" (23.9X19.8mm) | 0.53" (13.3mm) | 1 | 0.76" (19.4mm) | $314.60 | ||
| 3137 | Single | 0.78" (19.8mm) | 0.94"X0.78" (23.9X19.8mm) | 0.53" (13.3mm) | 1 | 0.76" (19.4mm) | $314.60 |
