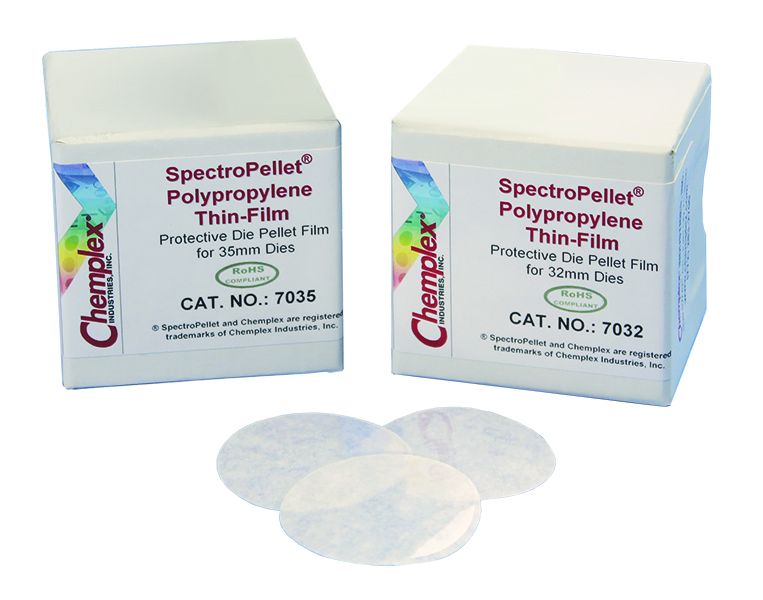

SpectroPellet® Protective Die Pellet Film
Some powdered sample materials exhibit tendencies to adhere to the pellet die surface during the briquetting operation. This condition frequently results in repeated attempts to form a satisfactory sample briquette with increasing potential threats of cross contamination and elaborate time consuming clean ups. A novel approach to resolving this problem is by using Chemplex® SpectroPellet® Film in precut circles.
Features
- Protect die pellet surface
- Minimize sample particle adhesion
- Avert cross contamination
- Reduce clean-up times
- Diameters
- 1.26″(32mm)
- 1.38″(35mm)
- 1.57″(40mm)
Package
- 500 films/package
Price range: $165.00 through $187.00
Some powdered sample materials exhibit tendencies to adhere to the pellet die surface during the briquetting operation. This condition frequently results in repeated attempts to form a satisfactory sample briquette with increasing potential threats of cross contamination and elaborate time consuming clean ups. A novel approach to resolving this problem is by using Chemplex® SpectroPellet® Film in precut circles. SpectroPellet® Film is characterized with a low coefficient of unwanted sample adhesion and high resistance to puncture. By simply inserting a SpectroPellet® Film precut circle between the die pellet and powdered sample substance, a barrier is formed that protects the contact surfaces of the pellet die and briquetted sample. The unique combination of qualities of SpectroPellet® Film maintains the briquetted sample material and pellet die surfaces intact by eliminating sample particle adhesion; pellet die clean ups are greatly facilitated.
Each precut SpectroPellet® Film circle is supported on a paper carrier frame for convenience of handling and application. Available in three different sizes for use with: 32, 35 and 40mm diameter dies.
® SpectroPellet and Chemplex are registered trademarks of Chemplex Industries, Inc.
FAST, CONVENIENT AND SIMPLE TO USE
- Place a small droplet of ordinary methyl, ethyl or isobutyl alcohol on the center of a clean surface of a die pellet. The alcohol serves as a temporary adhesive for attaching a SpectroPellet® Film.
- Transfer a SpectroPellet® Film to the die pellet by first sliding a small amount of the precut circle from the package from one point of the pellet and across to the opposite end.
- Repeat the procedure to the surface of the second die pellet (or integrated die cap) and briquette the sample in the usual manner. The SpectroPellet® Film is easily removed and clean ups are minimal.
Available Options
| SKU | Diameter | Qty/Pack | Price | Quantity | |
|---|---|---|---|---|---|
| 7032 | 32mm (1.26") | 500 | $165.00 | ||
| 7035 | 35mm (1.38") | 500 | $176.00 | ||
| 7040 | 40mm (1.57") | 500 | $187.00 |
