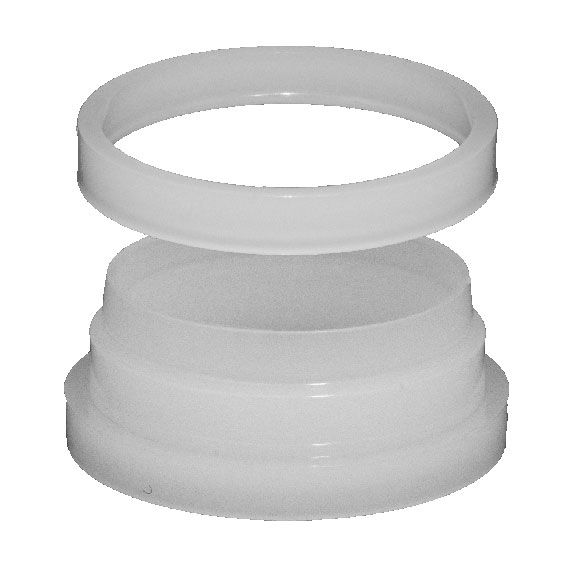

SpectroSulfur® Analyzer Single Open-Ended XRF Sample Cup
The Chemplex® has a line of XRF sample cups specifically designed to fit many of the Sulfur analysers.
- Single open-ended
- External overflow reservoir
- Snap-On Ring thin-film or TrimLess® sleeve attachment
- ThermoPlastic® seal venting
- For Sulfur Analyzers including the XOS and Horiba Systems
Quantity Discount
- Order 20-39 packages and receive $5.00 off standard price per package
- Order 40 or more and receive $10.00 off standard price per package
Made in USA
$60.00 – $65.00
The Chemplex® line of SpectroSulfur® XRF Sample cups, are designed to be compatible with most of the XRF analyzers targeting Sulfur, and other specific elements, analysis. The closed end integrates an external overflow reservior for collecting thermally sensitive fluid samples with tendencies to expand.
These XRF sample cups are configured with either the Snap-On Ring and bead-to-indent Cell geometry or the TrimLess® feature allowing for the maximim flexability. These create a taut thin-film sample support plane with leak-resistant seals.
The SpectroSulfur® Analyzer Sample Cups have an easily rupturable ThermoPlastic® seal provides a venting passageway leading to the integrated external overflow reservoir. Pressure differentials between the interior of the sample cup and sample chamber are equalized for taut thin-film sample support window planes. The Low Profile shape enables accommodation by some instrument sample holders with limited height provision.
® SpectroSulfur, SpectroMembrane, ThermoPlastic, TrimLess and Chemplex are registered trademarks of Chemplex Industries, Inc.
® Sindie is a registered trademark of X-Ray Optical Systems, Inc.
Instrument Compatibility
The following table lists some known sample cup compatibilities and provided for reference purposes. This is not an exhaustive list and serves as a guideline. Please check dimensions of the sample holder and compare them to the sample cup dimensions. Samples are available upon request to verify sample cup compatibilities.
| Manuf | Models | Sample Cup Cat No | |
|---|---|---|---|
| Bruker | S2 Puma | 2140, 2143, 2144 & 2154 | |
| Bruker | S2 Puma w/ Xflash | 2143, 2144 & 2154 | |
| Bruker | S2 Ranger | 2143 | |
| Bruker | S4 | 2140 | |
| Bruker | S8 w/ Flex Loader | 2143, 2144 & 2154 | |
| Bruker | S8 Tiger | 2143, 2144, 2154, 1095 & 2195 | |
| Horiba | SLFA Units | 1850, 1083 & 1084 | |
| Horiba | 6100/6800/60A | 1086 & 1087 | |
| Horiba | Mesa 7220 | 1083, 1850 & 3130 ( use 7220-P or 7220-S locating ring) | |
| Innov-X | Hand Held Units | 1330, 1330-SE & 1340 | |
| Oxford | Lab-X | 1940L, 1940-ox | |
| Oxford | MDX | 1935-ox, 1940-ox | |
| Oxford | Replacement Cells 54-LX6922 | 1440L | |
| Oxford | Replacement Cells & Covers: 54-CK-100 | 1935-ox | |
| Oxford | Replacement Cells & Covers: 54-CK-100 and L242 Holder | 1940-ox | |
| Malvern Panalytical | Epsilon 3XL, MiniPal | 2135 | |
| Malvern Panalytical | Axios | P2 | |
| Malvern Panalytical | Epsilon 5 | 2145, 2146 | |
| Malvern Panalytical | Venus 200 | 1095, 2195 | |
| Rigaku | Mini-Z | 2140 | |
| Rigaku | Primus, Rix, ZSX-100 | 1095, 2195 | |
| Spectro | XEPOS, Xepos Low S, Xepos IQ, X-Lab 2000, 200, 200T Titan, Phoenix | 1060, 1065, 1070, 1075, Series 1300, Series 1400, Series 1500, Series 1700, Series 1800, 1930, 1930-SE, 1940, 2131, 2135 | |
| Spectro | IQ | 2132 | |
| Spectro | Phoenix II | 2131 | |
| Spectro | Scout | 3106, 3110, 3115 & 3120 | |
| Thermo | Advant'x | 2146 | |
| Xenemetrix | X-Calibur, X-Cite | 2131, 2132, 2132S, 1540 | |
| XOS | Sindie®, Clora, Signal, HD Maxine, Phoebe, Petra | 1083, 1084 & 1850 | |
| XOS | Sindie 3rd Generation | 3130 & 3132 | |
Recycling
Chemplex® XRF sample cups are made from virgin HDPE and can be recycled. Please contact your local county or municipality to determine your local recycling options and procedures.
® Sindie, Clora, HD Maxine, Phoebe, Signal are registered trademarks of XOS Inc.
Available Options
| SKU | Open Ends | Outside Dia. | Max O.D. | Aperture | Vol | Height | Price | Quantity | |
|---|---|---|---|---|---|---|---|---|---|
| Single | 0.73" (18.4mm) | 0.94"X0.78" (23.9X19.8mm) | 0.53" (13.3mm) | 1 | 0.76" (19.4mm) | $65.00 | |||
| Single | 0.73" (18.4mm) | 0.94"X0.78" (23.9X19.8mm) | 0.53" (13.3mm) | 1 | 0.76" (19.4mm) | $65.00 | |||
| Single | 0.78" (19.8mm) | 0.94"X0.78" (23.9X19.8mm) | 0.53" (13.3mm) | 1 | 0.76" (19.4mm) | $65.00 | |||
| Single | 1.69" (42.9mm) | 1.87" (47.5mm) | 1.41" (35.8mm) | 13 | 0.77" (19.6mm) | $60.00 | |||
| Single | 1.69" (42.9mm) | 1.84" (46.7mm) | 1.43" (36.3mm) | 12 | 0.73" (18.5mm) | $60.00 | |||
| Single | 1.69" (42.9mm) | 1.84" (46.7mm) | 1.43" (36.3mm) | 12 | 0.73" (18.5mm) | $60.00 | |||
| Single | 1.69" (42.9mm) | 1.84" (46.7mm) | 1.43" (36.3mm) | 12 | 0.73" (18.5mm) | $60.00 | |||
| Single | 1.69" (42.9mm) | 1.84" (46.7mm) | 1.43" (36.3mm) | 12 | 0.73" (18.5mm) | $60.00 |
