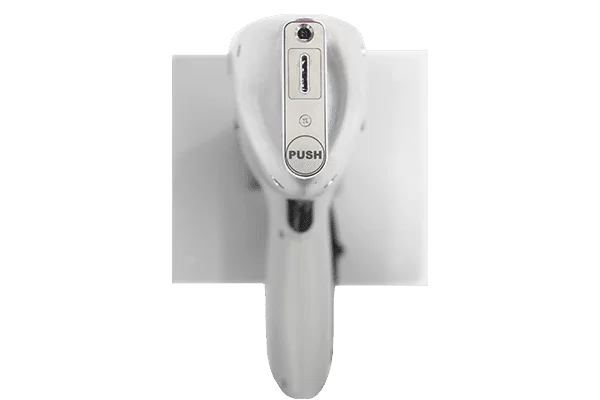

ProSpector 2

Entire lab in your hands. Always and anywhere.

ProSpector 2 is proved over many years handheld XRF analyzer. This instrument possesses advanced hardware and unique patented mathematical algorithms. ProSpector 2 demonstrates ultimate precision and repeatability of all measurements within some seconds. This innovative instrument demonstrates precise and accurate elemental analysis in many different fields.
  • High speed of operation @ above 500 000 CPS count rate
  • Ambient temperature and pressure corrections for highest stability
  • Over 10 hours operation from the battery
  • Detector protection
  • Extensive and editable alloy grade library
  • Protective film replacement with no tool required
  • Full compatibility with ElvaXTM PC software
  • Radiation safety: IR proximity sensor and low count detection
  • Great choice of accessories for comfortable work.

ProSpector 2 is one of the most powerful portable XRF spectrometers on the market, designed by Elvatech. Due to the advanced hardware and unique software algorithms, ProSpector 2 possesses incredible speed, repeatability and accuracy of the elemental analysis. ProSpector 2 joined powerful analytical software toolkit with user friendly interface. That allows all operators to make any testing in seconds.

Digital X-Ray Source digiX-40
Anode: Rh, W
Voltage: 40 kV
Current: 200 uАmp
Power: 4 W
5 positions filter changer

X-Ray Detector
Type: SDD (optional PIN)
Area: 30 mm2
Energy resolution: <140 eV @ 5.9 keV
Count rate: 500,000 cps

Electronics
DPP: proprietary DAS (Dynamically Adaptive Shaping) type, 80 MHz sampling rate
MCA: 4096 channels
Display: 4.3″
Connectivity: USB, Bluetooth
High resolution video camera (option)

General
Dimensions: 242 х 230 х 78 mm
Weight: 1.4 kg

Software
Operating system: Windows EC7
Analysis algorithms: Fundamental parameters (FPA), Empirical (regression) calibrations

 ProSpector 2ProSpector 2LE
X-Ray TubeW, 40 kVRh (W, Ag), 40 kV
Primary FiltersSingleautomatic 5-position changer
CollimatorsSingleSingle
X-Ray DetectorSi-PIN-DiodeLarge area SDD
Detection RangeCl – UMg – U
CCD CameraNoSample view (option)
Temperature correctionYesYes
Barometric correctionNoYes
BluetoothOptionOption
Wi-FiNoOption
Ingress ProtectionIP54IP54

Accuracy

Due to powerful and innovative hardware and unique software algorithms, ProSpector 2 demonstrates incredible repeatability and accuracy of chemical analysis for various materials.

Speed

Dynamically Adaptive Shaping (DAS) DPP designed by Elvatech combined with the Fast SDD detector allowed the ProSpector 2 to be the fastest handheld XRF spectrometer on the market for many years before the ProSpector 3 release

Stability

Due to the digiX-40 digital X-Ray tube, automatic temperature and barometric corrections, and digital calibration adjustment, ProSpector 2 demonstrates repeatability of chemical analysis for a long time without the need to make a drift correction or the system re-calibration.

F.A.Q.

Even the most reliable equipment from ELVATECH may require service or repair. However, you need not worry as ELVATECH CANADA LTD. offers warranty and post-warranty service for XRF spectrometers and analyzers at our company’s service center in Edmonton as well as at our authorized service center.

At Elvatech, our service concept is not centered around generating income but rather is a loyalty program for our customers. We offer fast, efficient, and non-profit maintenance and repair for our XRF spectrometers. This approach significantly reduces the cost of using our XRF spectrometers and analyzers and provides maximum convenience for our customers.

ELVATECH CANADA sells, rents, repairs, and provides service for XRF spectrometers and analyzers to customers all across Canada. Delivery is carried out by courier services directly from our head office in Edmonton based on CPT, Incoterms 2020.

Delivery time can vary from 1 to 12 weeks depending on the type of spectrometer, installed modes and calibrations, as well as availability of instruments in our stock.

Equipment is usually shipped after 100% payment is received to our bank account. Individual payment terms are provided for regular partners and dealers.
