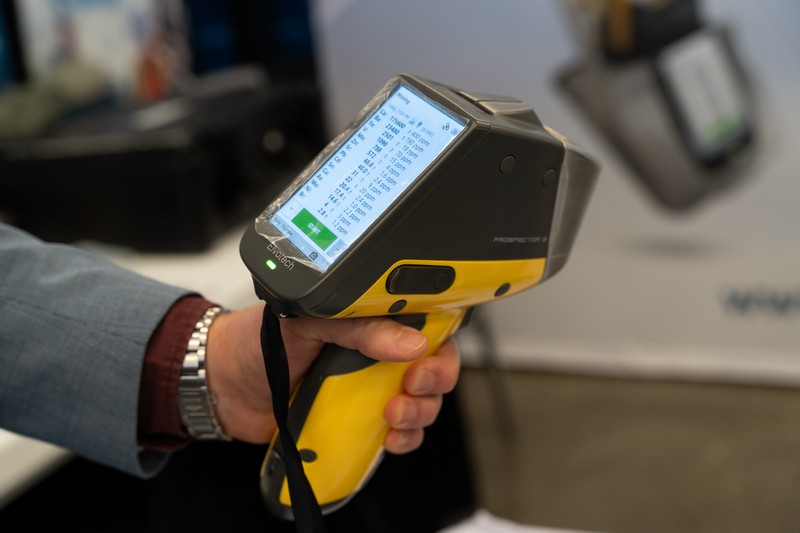

ProSpector 3

The most advanced handheld XRF

ProSpector 3 is the new generation portable XRF spectrometer. It demonstrates a new level of repeatability, accuracy of analysis, speed, and limits of detection. ProSpector 3 is the smallest and lightest XRF spectrometer on the market with an intuitive and user-friendly software interface. Unique processing algorithms help to improve effectiveness of analysis in different fields of application: Positive Material Identification (PMI), Alloys, Precious metals, Archeology, sulfur analysis in petrochemical products, Soils, Plastics, Automotive catalysts etc.

  • The fastest handheld XRF spectrometer in the world (due to above 500 000 cps – more than twice as fast as any other handheld XRF in the world) – highest accuracy within the shortest measurement time, excellent precision
  • World’s smallest (236 х 193 х 68 mm), and lightest (1.05 kg with a battery) handheld analyzer – easy to operate
  • Dustproof and waterproof instrument, proved with IP-67 standard – ProSpector 3 is the only one in the world which can make analysis under water!
  • Automatic collimator for small spot analysis of jewelry, welds etc.
  • Folding display – the screen can be adjusted in accordance with operation in the lab stand without connecting to your PC
  • Highest mobility – operates up to 16 hours on a single battery charge with hot battery swap
  • Superior calibration stability, compensation of influence of ambient temperature and pressure variations – no need to spend time for calibration
  • Two CCD cameras for macro- and micro- shots
  • Compatible with ElvaXTM PC software
  • Radiation safety: proximity sensor and low count rate detection do not energize x-ray tube without sample present in front of the nose part

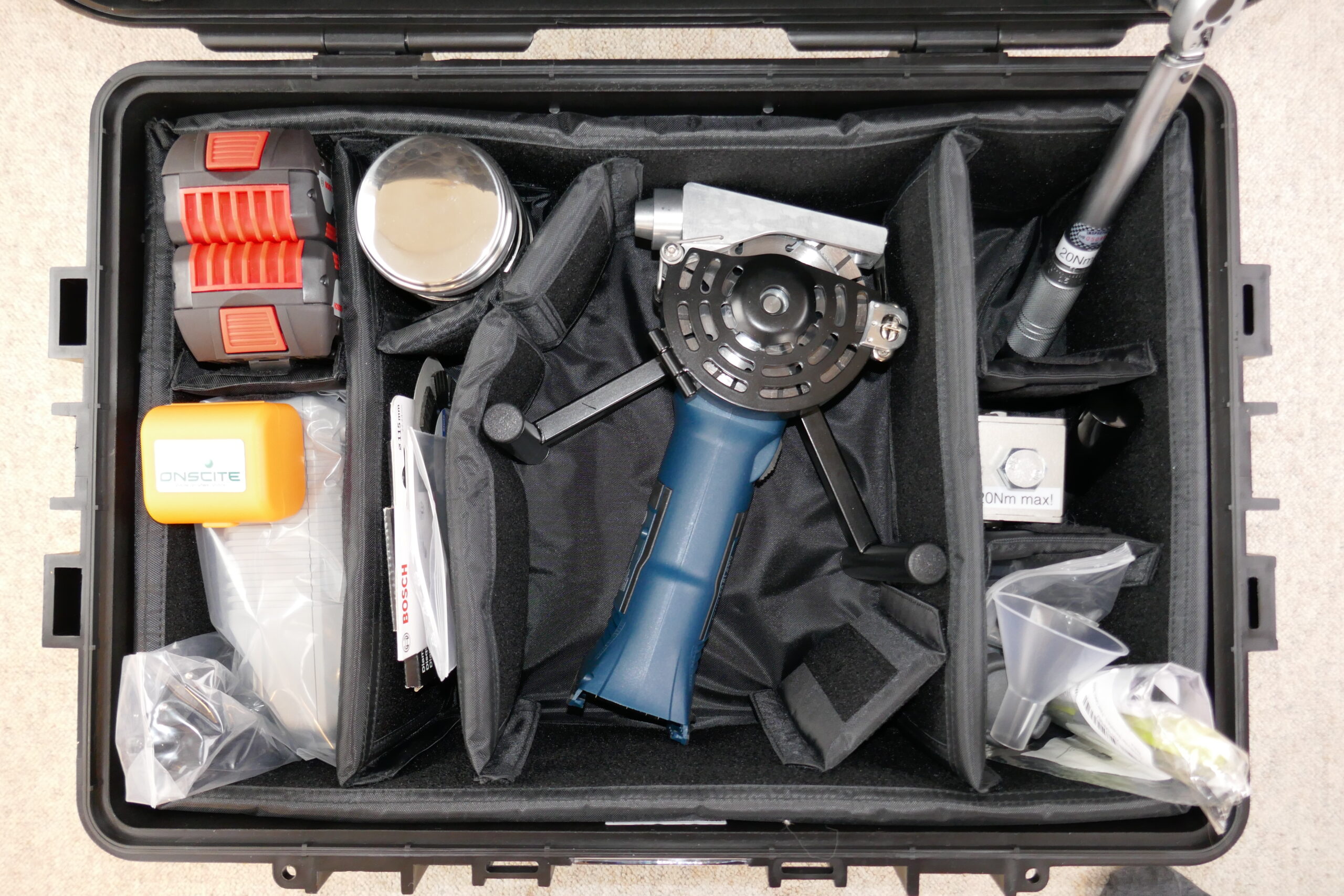

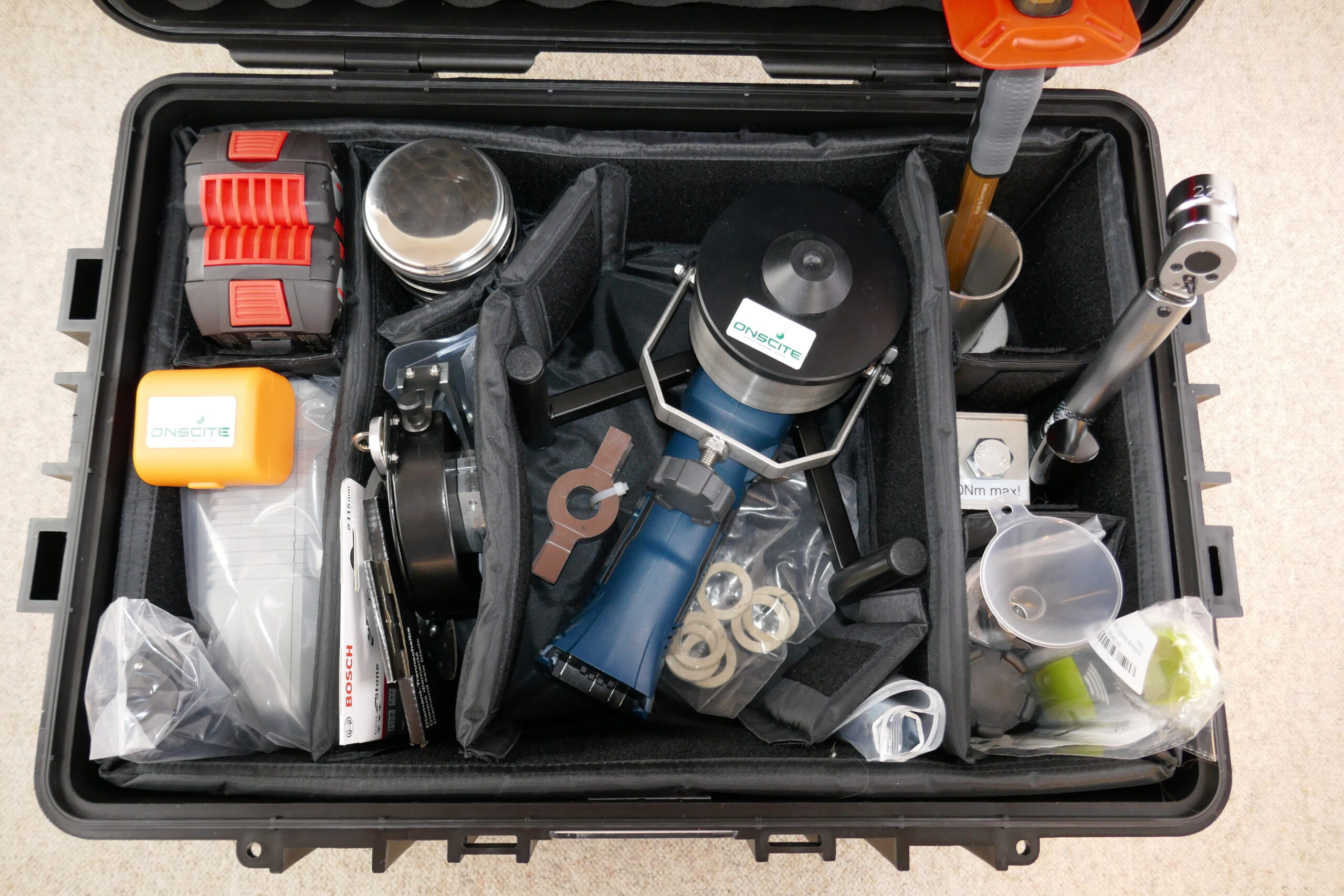

  • Wide range of accessories for convenient work.

Analysis can be exported from ProSpector 3 to a PC via USB, WiFi or Bluetooth connection. MicroSD slot is also available for data storage and transfer. The detector shield protects beryllium or graphene window, the most fragile and expensive part of the spectrometer, which can be easily being damaged by sharp objects like wires, shavings, rocks etc.



Digital X-Ray Source digiX-50
Anode: Rh, W
Voltage: 50 kV
Current: 200 uАmp
Power: 5 W
8 positions filter changer
2 position collimator changer

X-Ray Detector
Type: SDD
Area: 10, 30, or 40 mm 2
Energy resolution: <140 eV @ 5.9 keV
Count rate: 500,000 cps

Electronics
DPP: proprietory DAS (Dynamically Adaptive Shaping) type, 80 MHz sampling rate
MCA: 4096 channels
Display: 4.3″
Connectivity: USB, Bluetooth, Wi-Fi
2 high-resolution video cameras

General
Dimensions: 236 х 193 х 68 mm
Weight: 0.82 kg, 1.05 with battery kg
Protection: IP67

Software
Operating system: Windows EC7
Analysis algorithms: Fundamental parameters (FPA), Empirical (regression) calibrations

 ProSpector 3ProSpector 3 AdvancedProSpector 3 Max
X-Ray TubeW, 40 kV (option 50 kV)Rh, 40 kV (option 50 kV)Rh, 50 kV
Primary FiltersSingleautomatic 8-position changerautomatic 8-position changer
CollimatorsSingleautomatic 2-position changerautomatic 2-position changer
X-Ray DetectorSDD (option – large area SDD)Large area SDDExtra large area SDD
Detector WindowGraphene, 1 umGraphene, 1 umGraphene, 1 um
Detection RangeS – UMg – UMg – U (Na – U)
CCD CameraSample view (option)Sample view (option – macro view)Sample view, macro view
Temperature correctionYesYesYes
Barometric correctionNoYesYes
BluetoothOptionOptionYes
Wi-FiOptionOptionYes
Ingress ProtectionIP65IP65IP67
He purgeNoNoOption

Accuracy

With powerful hardware and unique software algorithms, the ProSpector 3 offers the highest precision and accuracy of elemental analysis for a wide range of materials

Speed

Dynamically Adaptive Shaping (DAS) DPP developed by Elvatech combined with the Fast SDD detector makes the ProSpector 3 the fastest handheld XRF analyzer on the market.

Stability

Thanks to the digiX-50 digital technology within X-Ray tube, barometric and temperature automatic corrections and digital calibration correction, ProSpector 3 demonstrates repeatability of chemical analysis for a long time without the need to re-calibrate the system

F.A.Q.

Even the most reliable equipment from ELVATECH may require service or repair. However, you need not worry as ELVATECH CANADA LTD. offers warranty and post-warranty service for XRF spectrometers and analyzers at our company’s service center in Edmonton as well as at our authorized service center.

At Elvatech, our service concept is not centered around generating income but rather is a loyalty program for our customers. We offer fast, efficient, and non-profit maintenance and repair for our XRF spectrometers. This approach significantly reduces the cost of using our XRF spectrometers and analyzers and provides maximum convenience for our customers.

ELVATECH CANADA sells, rents, repairs, and provides service for XRF spectrometers and analyzers to customers all across Canada. Delivery is carried out by courier services directly from our head office in Edmonton based on CPT, Incoterms 2020.

Delivery time can vary from 1 to 12 weeks depending on the type of spectrometer, installed modes and calibrations, as well as availability of instruments in our stock.

Equipment is usually shipped after 100% payment is received to our bank account. Individual payment terms are provided for regular partners and dealers.
